ebno_line_chart#

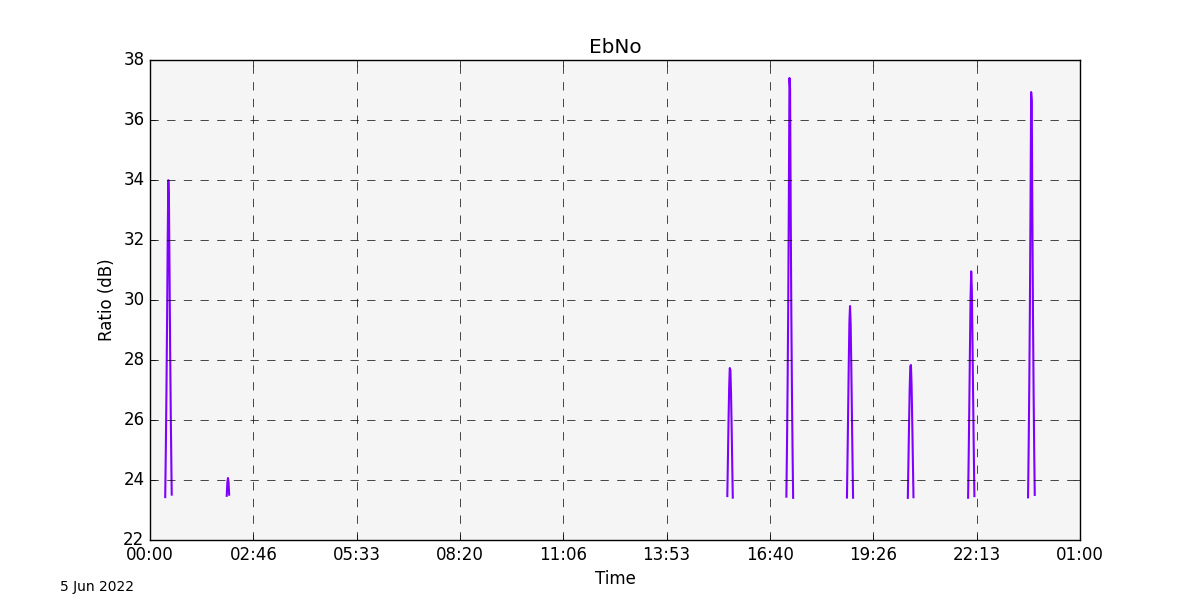

image of output from ebno_line_chart
ansys.stk.extensions.data_analysis.graphs.access_graphs.ebno_line_chart(stk_object: Access, start_time: Any = None, stop_time: Any = None, step: float = 60, colormap: Colormap = None, time_unit_abbreviation: str = 'UTCG', formatter: collections.abc.Callable[[float, float], str] = None) → Figure, Axes#

Plot the energy per bit to noise ratio (Eb/No) over time, during each access interval.

This graph wrapper was generated from AGI\STK12\STKData\Styles\Access\EbNo.rsg.

Parameters:

stk_object : Access The STK Access object.

start_time : Any The start time of the calculation (the default is None, which implies using the scenario start time).

stop_time : Any The stop time of the calculation (the default is None, which implies using the scenario stop time).

step_time : float The step time for the calculation (the default is 60 seconds).

colormap : Colormap The colormap with which to color the data (the default is None).

time_unit_abbreviation : str The time unit for formatting (the default is “UTCG”).

formatter : Callable [[float, float], str] The formatter for time axes (the default is None).

Returns:

Figure The newly created figure.

Axes The newly created axes.

Import detail#

from ansys.stk.extensions.data_analysis.graphs.access_graphs import ebno_line_chart
